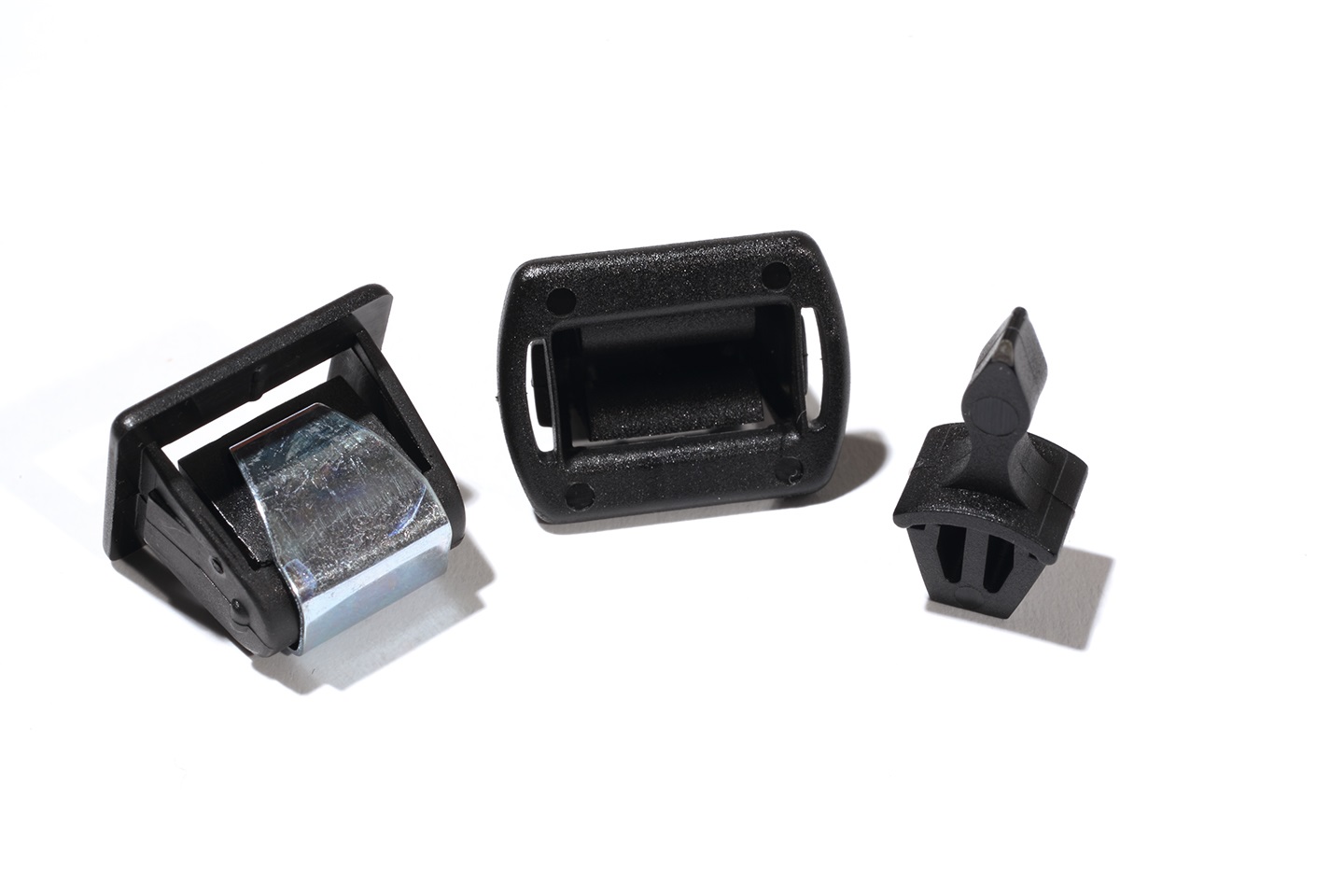

Chiusure_Molletta_metallica

SPECIFICHE TECNICHE
P/N DIMENSIONI - A DIMENSIONI - B DIMENSIONI - C ø FORO SPESSORE DISEGNO
01808.71.11 20,0 18,0 16,0 16,5 x 11,5 1,0 ÷ 1,5 CCMM (1) CCMM (2)
02339.71.11 25,0 18,0 16,5 18,0 X 13,5 3,0 ÷ 3,5 CCMM (1) CCMM (2)
C3197.94.11 23,0 18,0 16,0 16,7 x 11,5 0,8 ÷ 1,0 CCMM (1) CCMM (2)
A3197.96.11 23,0 18,0 16,0 16,7 x 11,5 0,8 ÷ 1,0 CCMM (1) CCMM (2)
05589.21.11 20,6 13,0 8,4 7,0 x 7,0 0,5 ÷ 1,5 CCMM (3)
