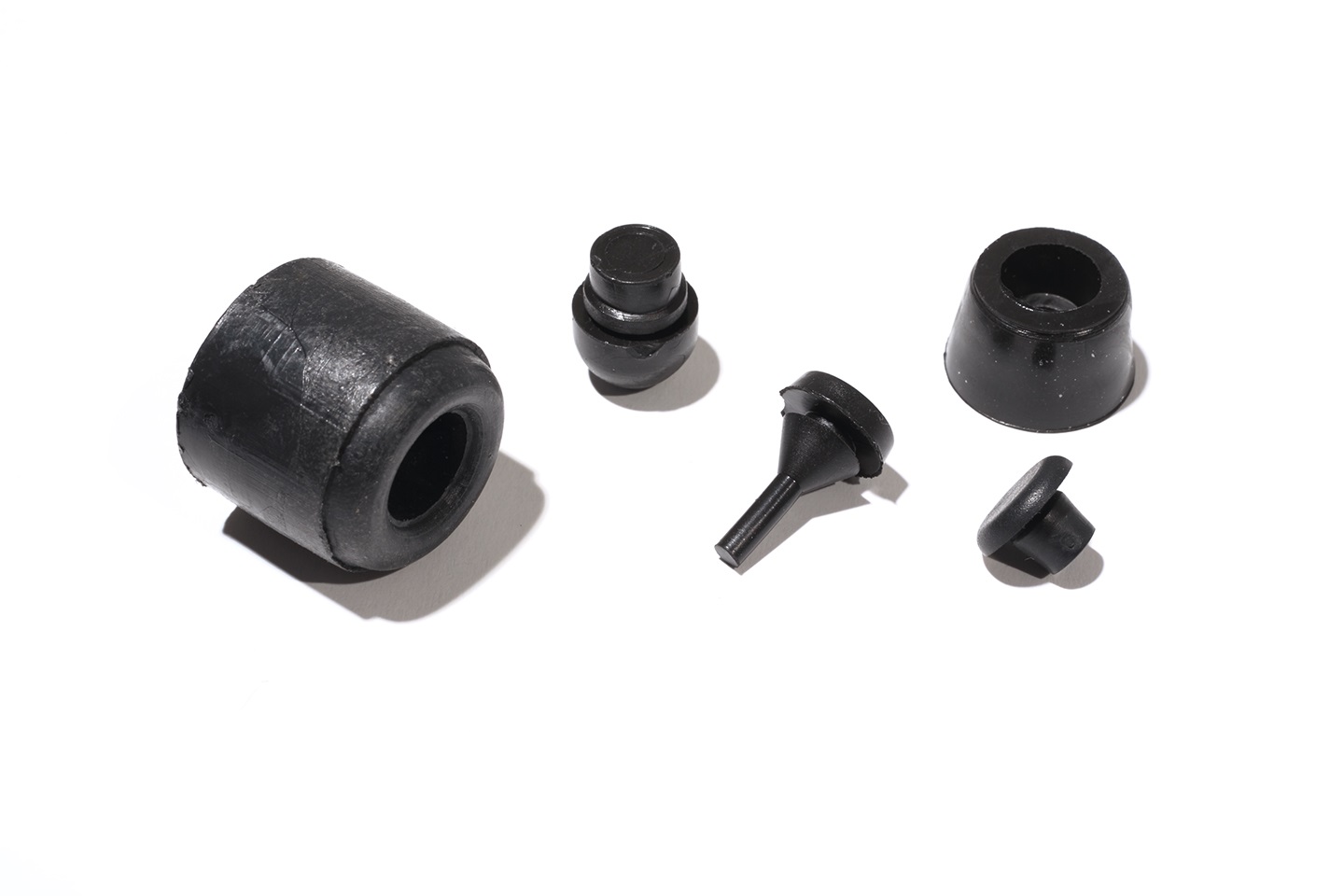

Piedini_2

SPECIFICHE TECNICHE
P/N DIMENSIONI - D DIMENSIONI - d DIMENSIONI - E DIMENSIONI - H DIMENSIONI - L DIMENSIONI - S DISEGNO
00445.21.51 7,0 6,0 12,0 2,0 8,0 1,0 P2 (1)
00446.21.51 7,0 6,0 12,0 4,5 10,5 1,0 P2 (1)
30111.53.51 7,0 6,0 13,0 9,0 15,0 1,0 P2 (1)
30112.53.51 8,0 7,0 13,0 9,0 15,0 1,0 P2 (1)
30113.53.51 9,0 8,0 13,0 9,0 15,0 1,0 P2 (1)
30114.53.51 10,0 9,0 13,0 9,0 15,0 1,0 P2 (1)
00441.21.51 4,0 1,25 8,0 1,5 5,0 1,0 P2 (2)
30190.53.51 6,0 3,0 12,0 2,5 16,0 1,5 P2 (2)
30191.53.51 6,0 3,0 12,0 4,0 16,0 1,5 P2 (2)
30192.53.51 6,0 3,0 12,0 6,0 16,0 1,5 P2 (2)
30120.53.51 6,0 2,0 12,0 3,0 8,0 - P2 (3)
30121.53.51 6,0 3,0 12,0 3,0 8,0 - P2 (3)
30130.53.51 9,0 3,0 19,0 5,0 12,0 - P2 (3)
30131.53.51 9,0 4,0 19,0 5,0 12,0 - P2 (3)
30132.53.51 9,0 5,0 19,0 5,0 12,0 - P2 (3)
30180.53.21 12,0 3,0 24,0 6,0 21,0 - P2 (4)
30181.53.21 12,0 4,0 24,0 6,0 21,0 - P2 (4)
30182.53.21 12,0 5,0 24,0 6,0 21,0 - P2 (4)
30183.53.21 12,0 6,0 24,0 6,0 21,0 - P2 (4)
30184.53.21 12,0 7,0 24,0 6,0 21,0 - P2 (4)
