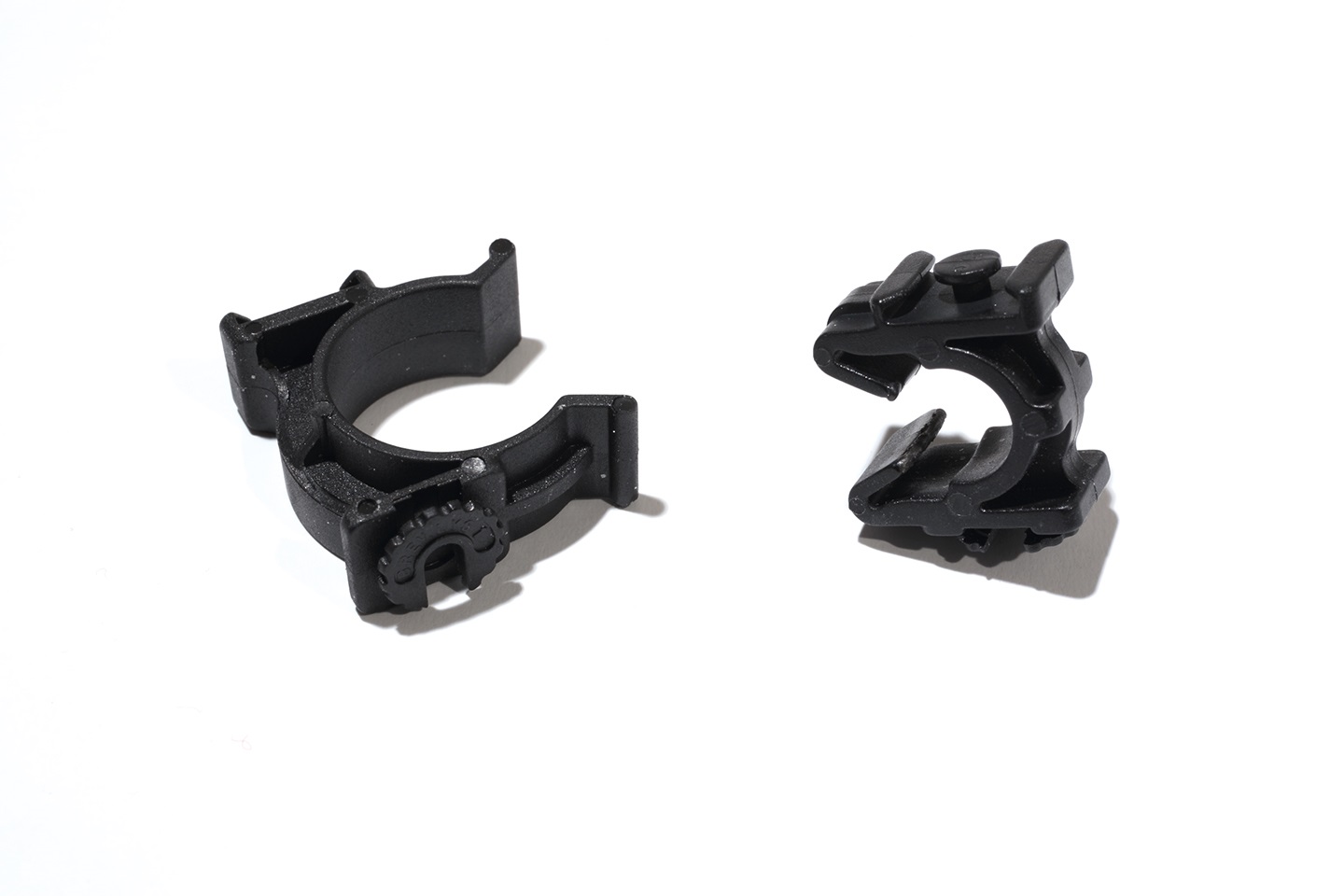

Fermacavi_modulari_1

SPECIFICHE TECNICHE

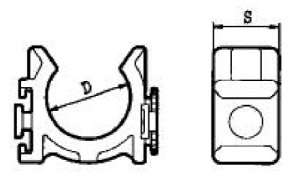

M (7)

P/N DIMENSIONI - ø DIMENSIONI - S DIMENSIONI - A DIMENSIONI - B DIMENSIONI - C DIMENSIONI - D DIMENSIONI - E DIMENSIONI - F DISEGNO
03828.65.11 6,0 11,0 14,0 7,0 5,0 7,0 - - M
03826.65.11 8,0 11,0 14,0 8,0 6,0 7,0 - - M
04448.94.11 9,0 11,0 14,0 8,5 6,5 7,0 - - M
03861.44.11 10,0 11,0 14,0 9,0 7,0 7,0 - - M
03860.65.11 12,0 11,0 14,0 9,7 7,8 7,0 - - M
03943.65.11 14,0 11,0 14,0 11,5 9,5 7,0 - - M
03945.94.11 18,0 11,0 14,0 14,0 12,0 7,0 - - M
03946.65.11 20,0 11,0 14,0 15,3 13,2 7,0 - - M
04441.94.11 22,0 11,0 14,0 16,3 14,3 7,0 - - M
06455.03.11 27,0 11,0 14,0 19,0 17,0 7,0 - - M
03919.65.11 5,0 11,0 14,0 7,5 5,5 7,0 - - M (2)
03920.94.11 6,3 11,0 14,0 9,0 7,0 7,0 - - M (2)
03947.05.11 8,0 11,0 14,0 10,5 8,5 7,0 - - M (2)
05554.65.11 10,0 11,0 14,0 11,3 10,0 7,0 - - M (2)
06071.05.11 12,0 11,0 14,0 11,5 11,5 7,0 - - M (2)
06072.65.11 16,0 11,0 14,0 14,0 14,0 7,0 - - M (2)
04693.03.11 6,5 0,7 ÷ 2,0 14,0 7,0 6,0 5,0 6,0 16,0 M (3)
03831.65.11 6,5 0,7 ÷ 2,0 14,0 7,0 6,0 6,0 6,0 16,0 M (4)
03832.05.11 8,0 0,7 ÷ 2,0 14,0 7,0 6,0 6,0 6,0 16,0 M (4)
03948.02.11 6,5 0,5 ÷ 1,5 14,0 7,0 7,0 7,0 - - M (5)
03949.94.11 8,0 0,7 ÷ 1,0 14,0 7,0 7,0 7,0 - - M (5)
03833.65.11 5,0 15,0 14,0 7,0 7,0 7,0 16,0 - M (6)
