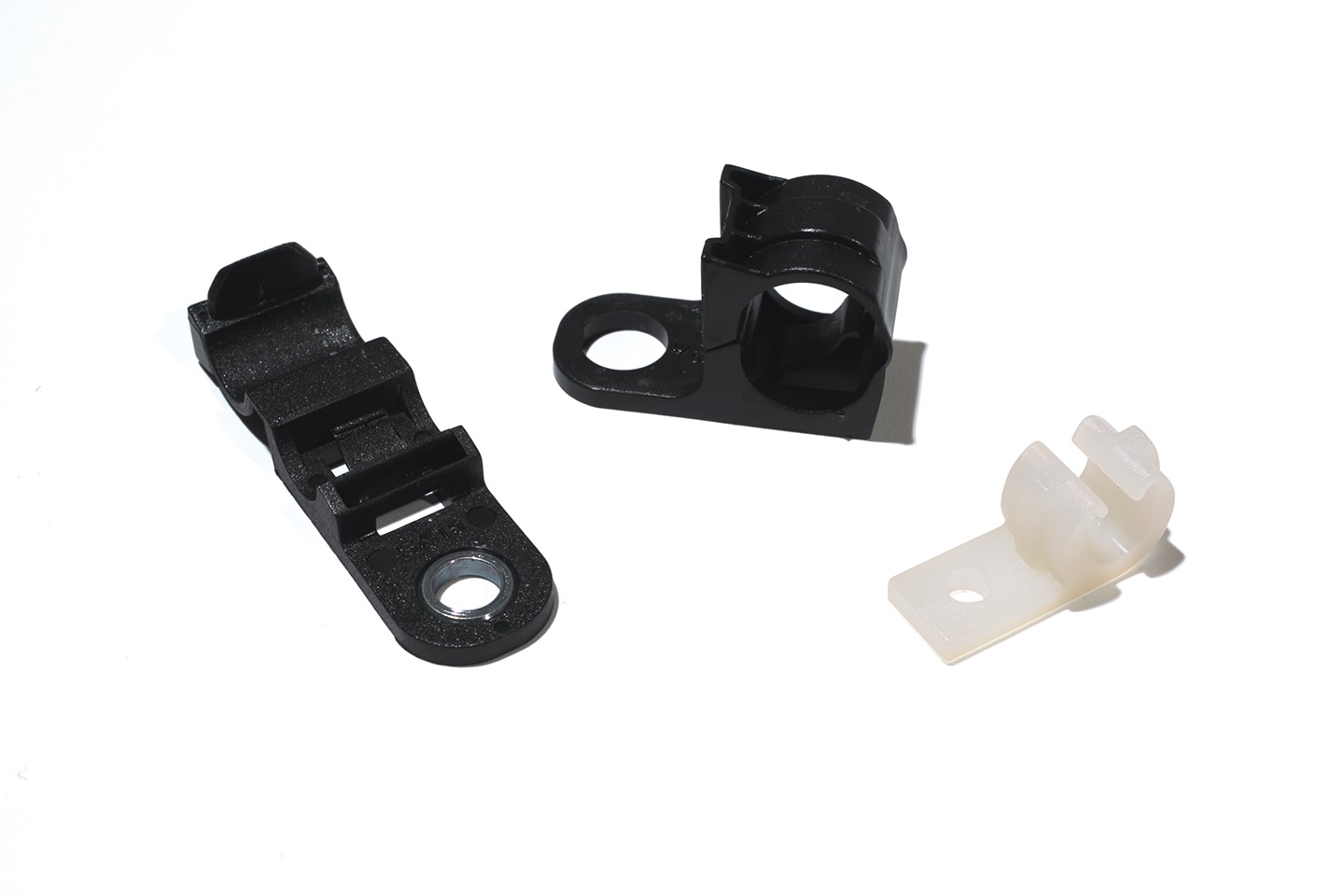

Fermacavi_fissaggio_vite

SPECIFICHE TECNICHE
P/N DIMENSIONI - ø DIMENSIONI - A DIMENSIONI - B DIMENSIONI - C DIMENSIONI - D DIMENSIONI - E DIMENSIONI - F DIMENSIONI - S DISEGNO
00225.94.10U 7,5 13,0 7,0 4,3 3,0 14,0 6,0 10,0 CFAV (1) CFAV (2)
00242.94.11U 9,0 15,0 8,0 6,0 3,5 16,0 6,0 10,0 CFAV (1) CFAV (2)
00894.91.41U 11,2 16,0 8,0 6,2 2,2 20,0 6,0 11,0 CFAV (1) CFAV (2)
00678.70.10 14,5 24,0 - 5,0 1,8 20,0 7,5 12,0 CFAV (1) CFAV (2)
04970.05.11A 10,0 35,0 7,5 6,5 2,5 7,5 20,0 16,0 CFAV (3) CFAV (4)
A7347.96.11 12,0 38,5 9,0 6,5 2,3 10,0 20,0 16,0 CFAV (3) CFAV (4)
03405.05.11 14,0 39,0 11,0 6,5 2,5 9,0 19,0 16,0 CFAV (3) CFAV (4)
03405.65.11B 14,0 39,0 11,0 5,0 2,5 9,0 19,0 16,0 CFAV (3) CFAV (4)
04824.65.11 20,0 49,5 13,0 6,0 3,0 8,0 22,0 16,0 CFAV (3) CFAV (4)
03001.94.10 23,0 46,0 14,5 5,5 3,0 7,5 26,0 16,0 CFAV (3) CFAV (4)
03001.94.11A 23,0 46,0 14,5 6,5 3,0 7,5 26,0 16,0 CFAV (3) CFAV (4)
03181.65.11A 28,0 54,0 18,0 6,5 3,0 8,0 28,0 16,0 CFAV (3) CFAV (4)
05529.05.11A 33,0 51,0 16,5 6,5 4,0 7,5 28,0 16,0 CFAV (3) CFAV (4)
